How to Accurately Calculate Stockpile Volume Using Civil 3D: A Step-by-Step Workflow

Thumbnail bai viet

In civil engineering, accurate volume calculation of stockpiles is essential for budgeting, logistics, and site planning. At Civil Outsourcing, we leverage AutoCAD Civil 3D to deliver fast, reliable, and highly accurate stockpile volume calculations for our clients. Here’s how we do it:

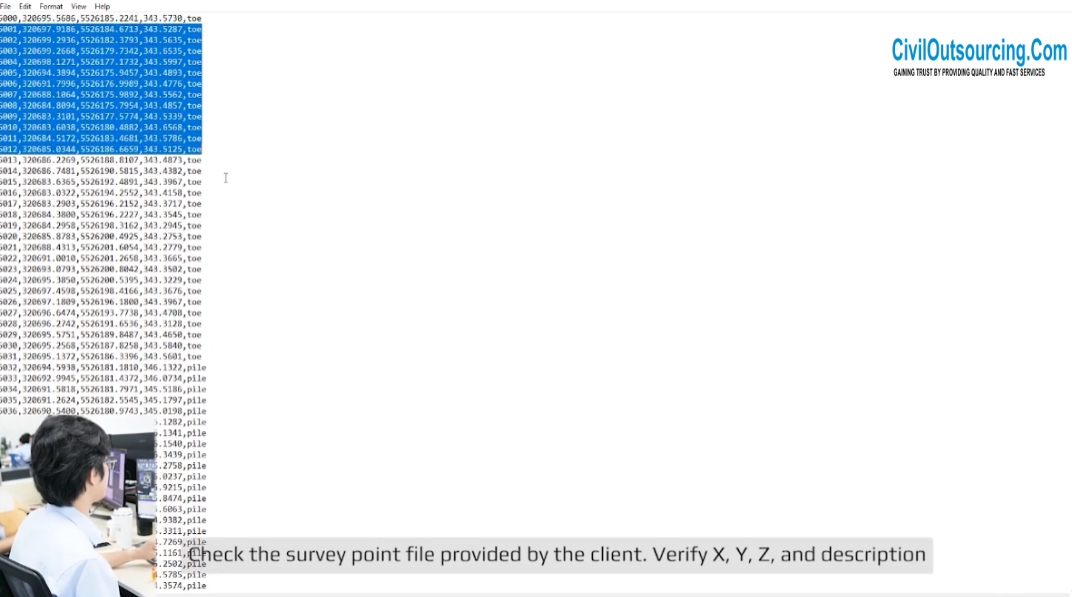

Step 1: Verify Client Survey Data

We begin with a detailed review of the client’s survey data. All X, Y, Z coordinates and point descriptions are carefully checked for completeness and consistency to ensure smooth processing later.

1

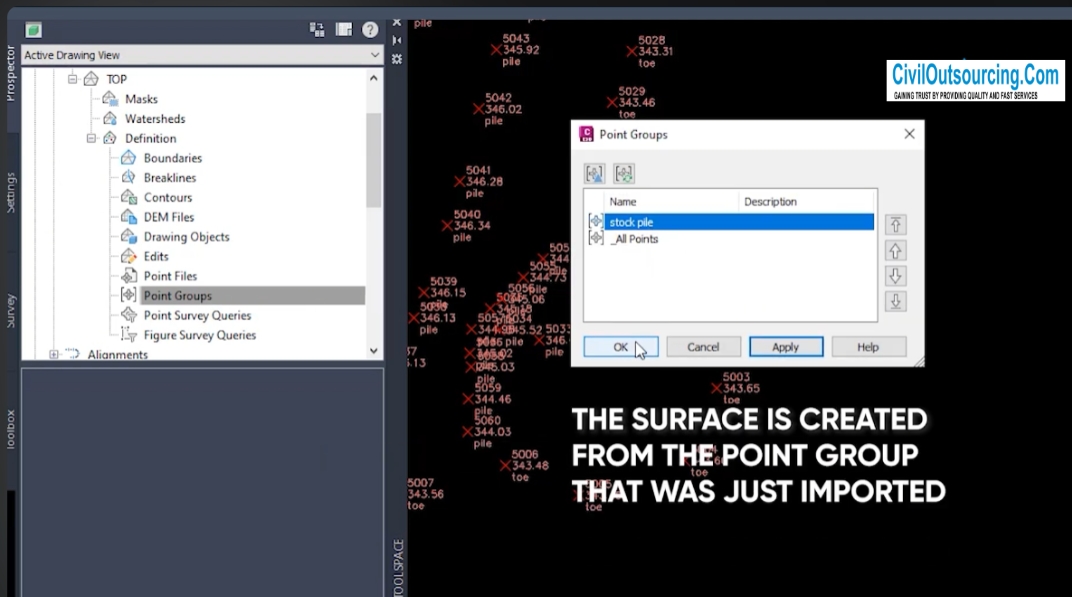

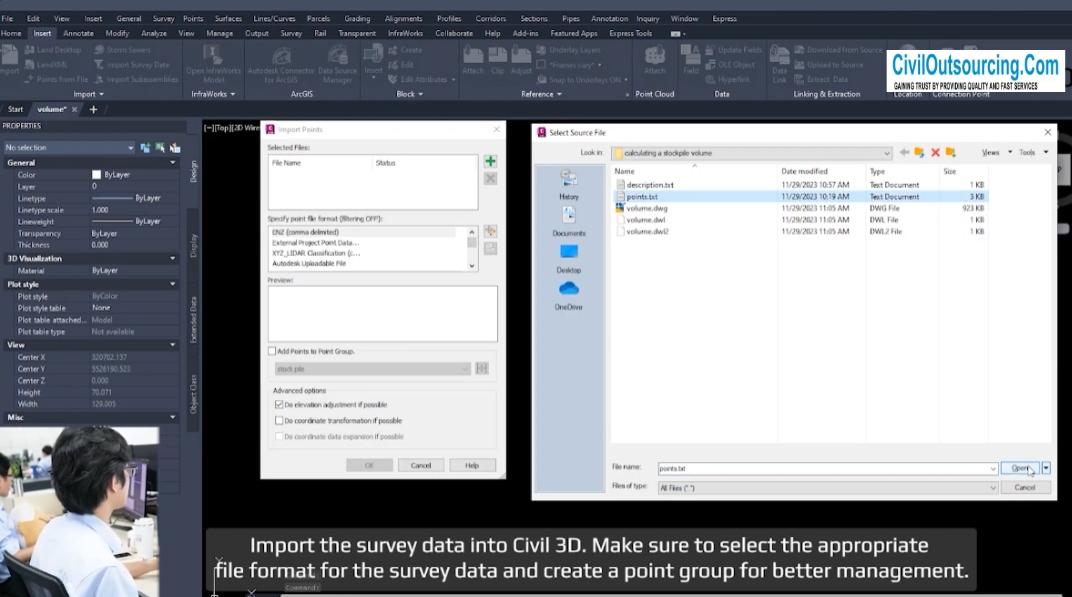

Step 2: Import Data into Civil 3D

We import the verified data into Civil 3D using the appropriate format (commonly CSV or TXT). The points are then assigned to a Point Group to facilitate layer control and efficient management throughout the project.

4

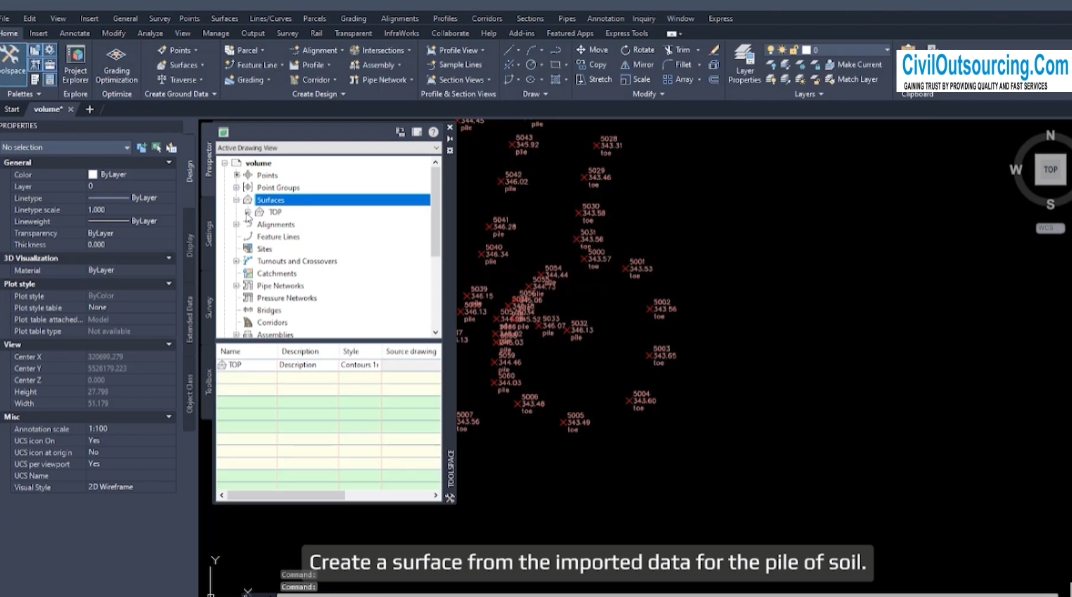

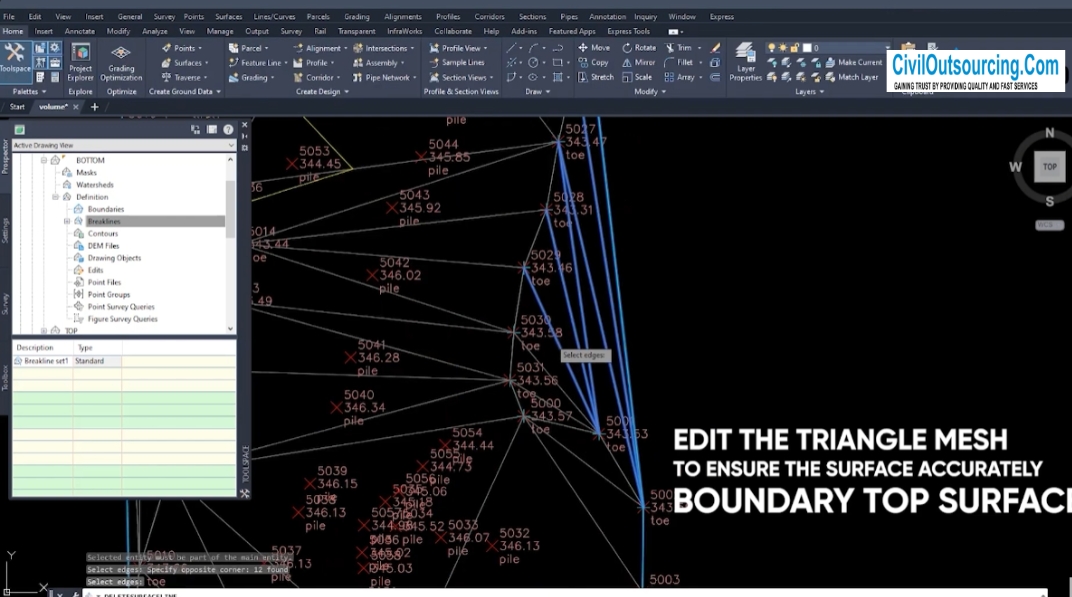

Step 3: Create the Top Surface

Using the imported points, we generate a 3D surface that accurately represents the existing topography of the stockpile. This surface reflects the actual shape and elevation of the material pile.

5

6

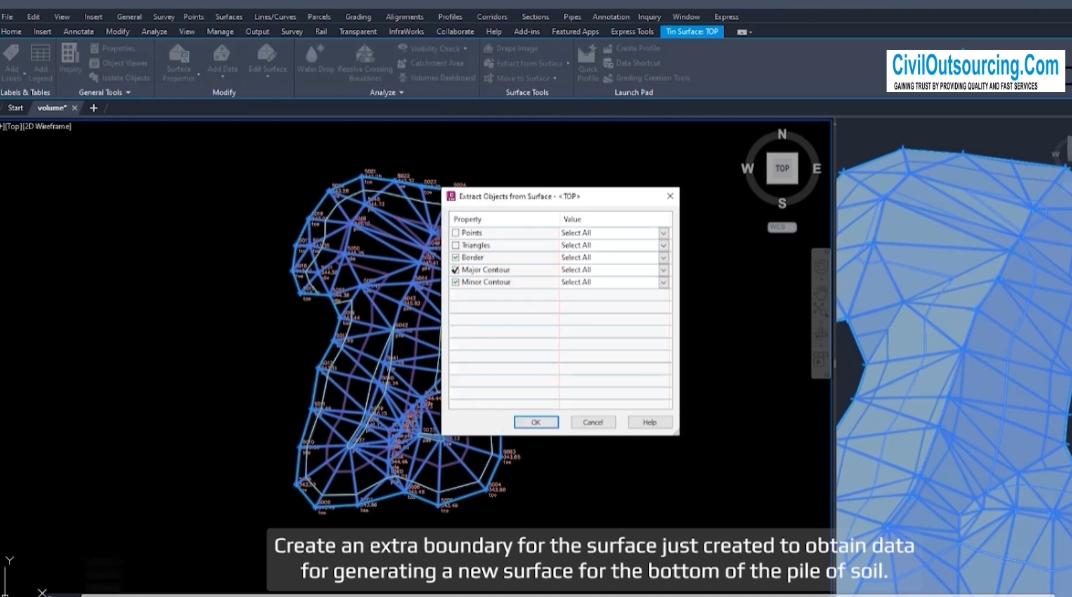

Step 4: Define Boundary for Bottom Surface

Next, we define a closed boundary around the stockpile based on site constraints or client input. This serves as the footprint for creating the theoretical base surface of the stockpile.

READ MORE:  FOCUSING ON THE CORE OF SERVICES WITH LAND SURVEY DRAFTING OUTSOURCING SERVICES

2

Step 5: Generate the Bottom Surface

We create a bottom surface—flat or graded—within the defined boundary. This surface represents the original ground level prior to stockpiling and forms the baseline for volume comparison.

9

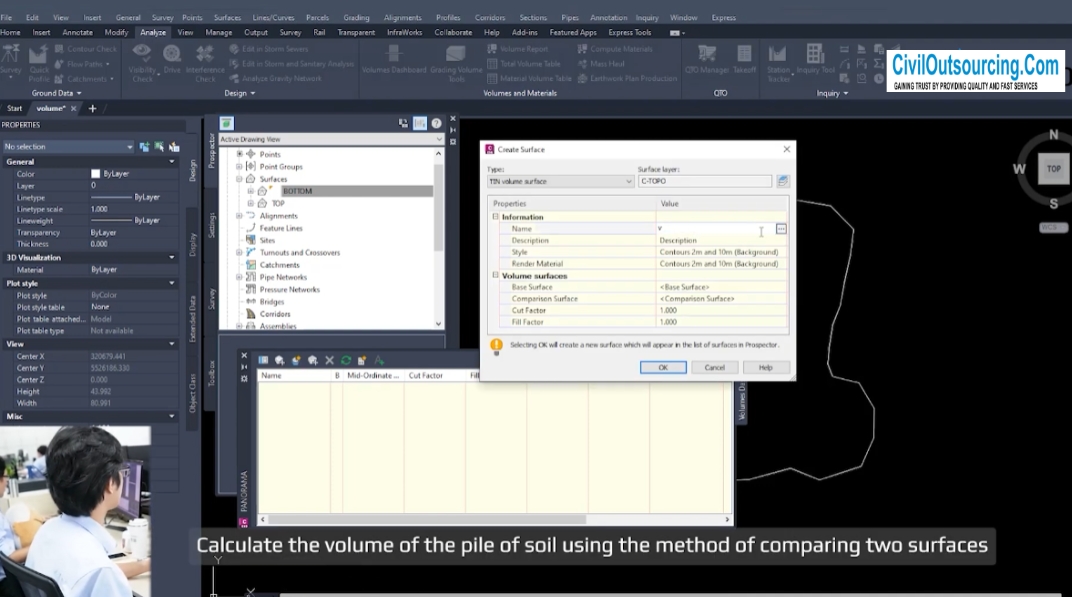

Step 6: Volume Calculation Between Two Surfaces

Using Civil 3D’s volumetric tools, we compute the Cut/Fill between the top (stockpile) and bottom (original ground) surfaces. The result is an exact volume in cubic meters or feet, tailored to the client’s preferred unit.

10

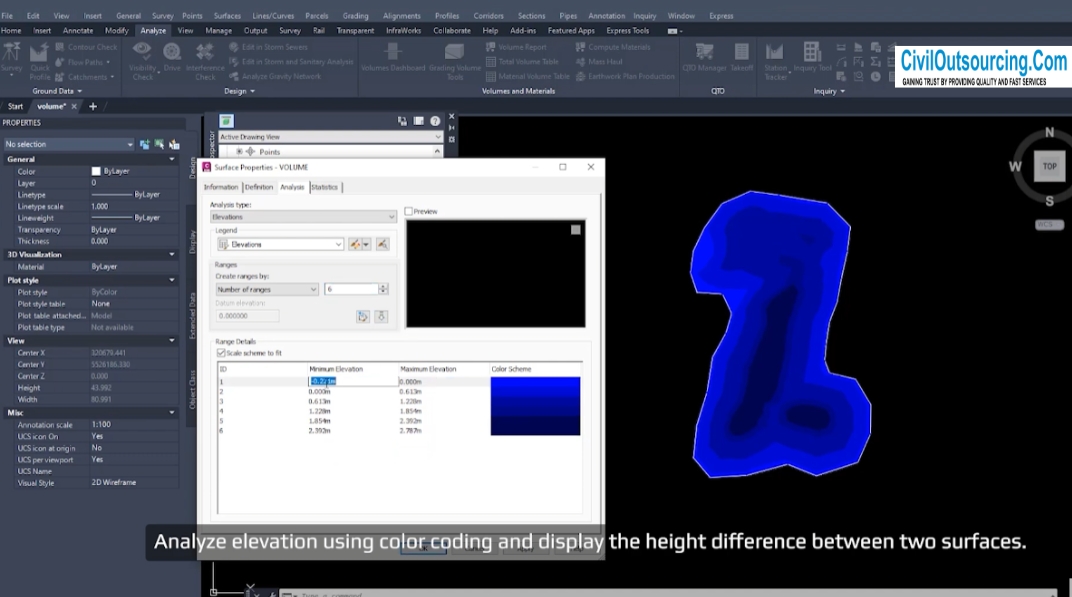

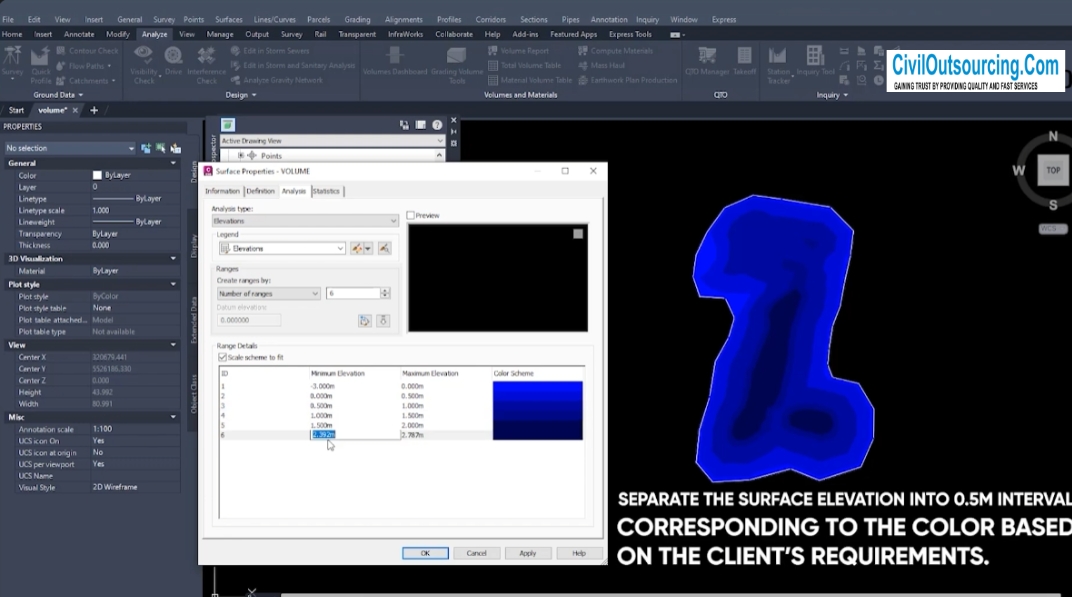

Step 7: Elevation Analysis and Visualization

We apply color-coded elevation analysis to highlight height ranges across the pile. This visual representation helps clients quickly assess the volume distribution and identify critical height variations.

3

8

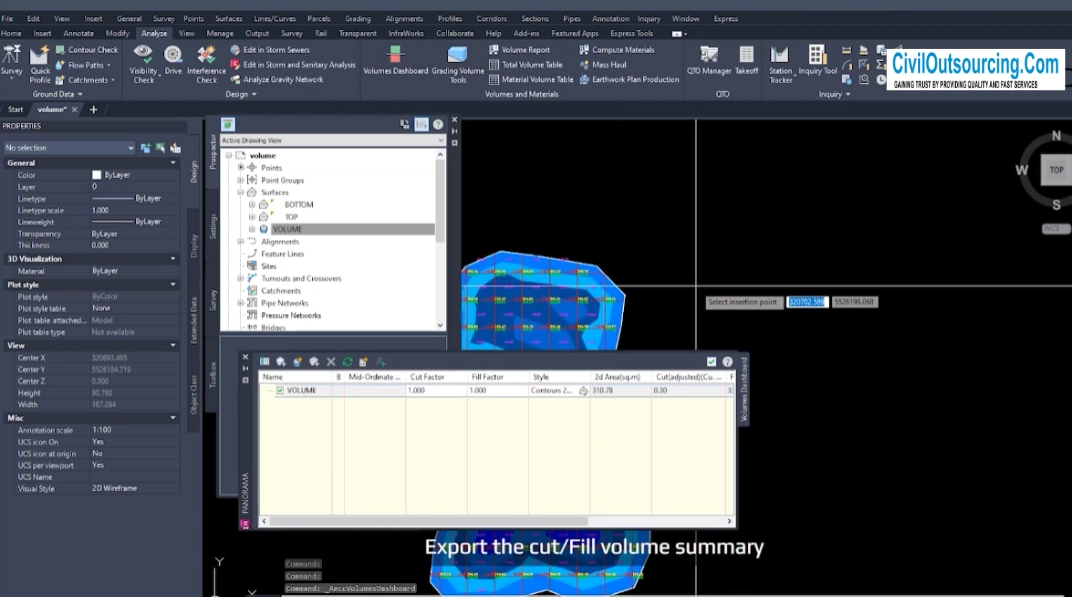

Step 8: Export Volume Report

Finally, we generate a detailed Cut/Fill volume report formatted for client use — ideal for construction documentation, takeoffs, or regulatory compliance.

7

Why Choose Civil Outsourcing for Stockpile Volume Calculation?

  • Fast Turnaround: With over 50 full-time engineers, we deliver most volume calculations within 24 hours.

  • High Accuracy: Our use of Civil 3D’s advanced toolsets ensures precise, industry-compliant results.

  • International Standards: All workflows align with engineering practices in the USA, UK, and Australia.

  • Scalable Services: From one stockpile to hundreds, we maintain consistency and accuracy across all sizes.
