GAINING TRUST BY PROVIDING QUALITY SERVICES
OUR PORTFOLIO

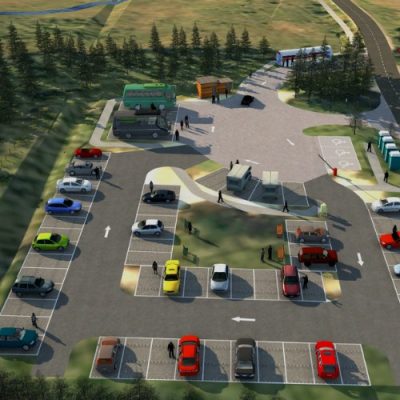

SWEPT PATH ANALYSIS WE OFFER A WIDE RANGE OF SWEPT PATH ANALYSIS SERVICES INCLUDING: – Car Park Design and Assessment – Petrol Filling Station layouts – Vehicle Access/Egress Arrangements – Office, Industrial and Retail...

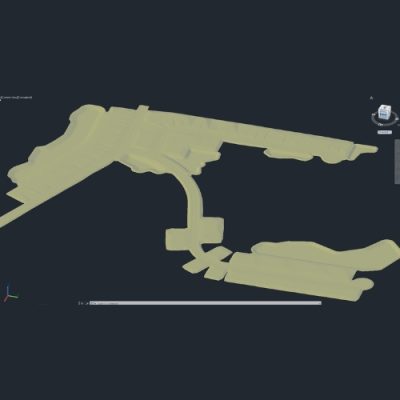

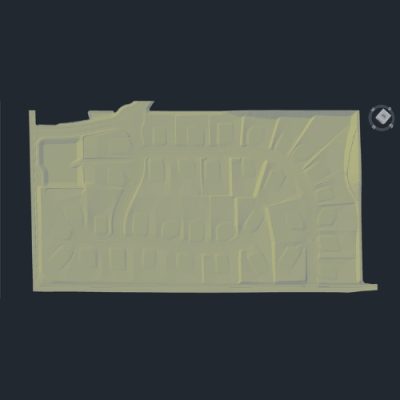

SUBDIVISIONS AND LAND DEVELOPMENT PROJECT SUMMARY: + The project site located in California with a total area is approximately 10.25 acres. + Requirements: Maximum numbers of lots, earthwork balance, least cost of construction by minimum retaining...
COMMERCIAL DEVELOPMENT PLANS PROJECT SUMMARY: Construct a new commercial complex area. OUR ROLE: + Design base files from client’s idea: Driveway, Entrance locations, ADA Parking Stall, Curb ramp… + Design grading, surface, storm drainage. + Create...
RESIDENTIAL GRADING PLANS PROJECT SUMMARY: The proposed improvements include: + Proposed driveway from Main Street. + Proposed Main Residence, Swimming Pool, Sport Court OUR ROLE: + Generating earthwork quantities. + Grading associated with the...
EARTH QUANTITIES GENERATED FROM SPOT ELEVATIONS PROJECT SUMMARY & OUR ROLE: Our client provided elevations and slopes on the plan and would to get earthwork quantities and how much grading construction costs. OUR ROLE: + We created the...
CIVIL 3D MODELING + Alignment and Corridor Modeling: Horizontal & vertical curve, Cul-De-Sac, Knuckle, Intersection,… + Grading, Earthwork, Surface Modeling: Residential, Commercial, Industrial, Institutional projects.

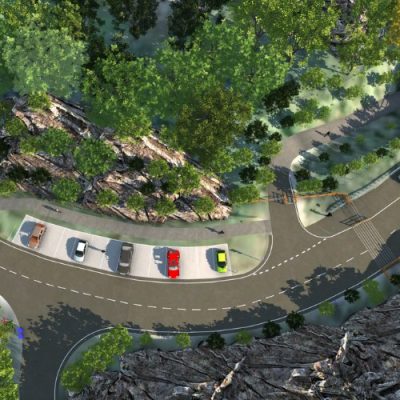

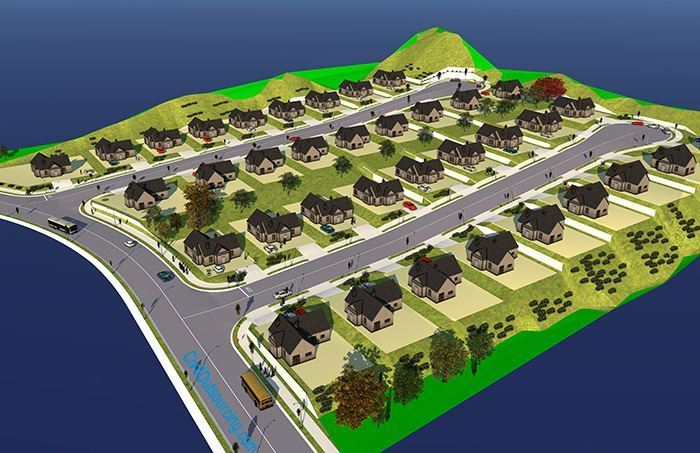

INFRAWORK MODELING & FLY THROUGH VIDEO + Infraworks Modeling from Civil 3D data.
PLAN SHEET SETUP AND CREATION We have completed Plan Sheets creation with many projects by manual method or using sheet set manage (SSM) which meets CAD Standard, company form, city/county of submittal checklist with quick turnaround time. Plan...

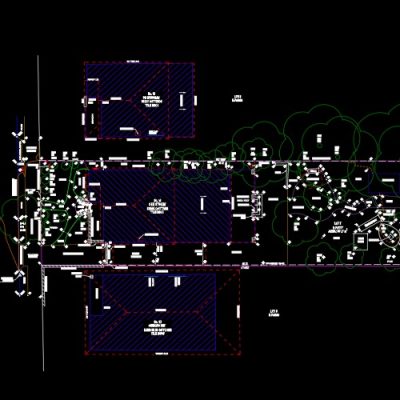

LAND SURVEY DRAFTING – Topographic Survey: + INPUT: Point files, photos of site, and project information ( Project name, project number, Benchmark, Legal Description,…) + OUTPUT: Topographic survey presented by Civil 3D features....
